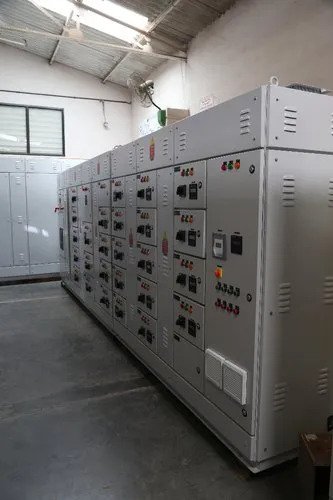

It is used for distribution & control of various power source used in Industry Normally PCC rs installed near power source hence fault level is high. It is designed to Suit fault level of 50KA or 65 KA for 1 sec Busbar system n PCC is designed to suit the fault level as well as temp rise to 40*c above ambient. Ample space is provided for cable termination Various protections viz short circuit. overload. earth fault .under voltage etc are provided to protect source & equipment.
Energy :
| Type | Fixed/Draw out fully componential, dust and vermin proof |
| Protection Class | IP42 / IP 54 / IP 55 - Optional |
| Moc | CRCA 10 / 12 / 14 / 16 Gauge as required. Modular construction with wide choice of compartment size |
| Rated Voltage | 600 V, 50 HZ, 3 phase, 4 wire |
| Rated Current | Up to 6000A main busbar |
| Short Circuit Level | STD 50 KA 1 sec |
| Optional 65 KA 1 sec | |
| Busbar Support | SMC / DMC |
| Busbar | Aluminium / Copper, Electrolytic grade |
| Standard | IS 8623.DT |
| Bus Chamber | With safety barrier |
| Cable Chamber | Ample space for cabling with supports |
| Entry | Top or Bottom |
